Flexible microwave substrates are extensively used for variety of high end microwave circuit applications such as high power solid state amplifiers, patch antennas, mobile base stations etc. Although large volume of these materials is being used for strategic applications in the country, the requirement is fully met through imports. Understanding the importance of indigenization of these strategic materials, DAE developed a dimensionally stable, planar and isotropic PTFE/ceramic composite laminates. Excellent RF performance was obtained in terms of output power, gain and efficiency during system level evaluation.

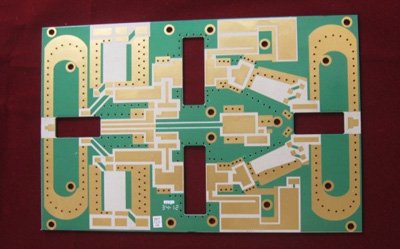

Flexible microwave substrates are extensively used for variety of high end microwave circuit applications such as high power solid state amplifiers, patch antennas, mobile base stations etc. Understanding the importance of indigenization of these strategic materials, DAE has developed a dimensionally stable, planar and isotropic PTFE/ceramic composite laminates.  Excellent RF performance was obtained in terms of output power, gain and efficiency during system level evaluation. Main properties of this developed substrate are given here.

APPLICATIONS

The architecture of many passive and active RF and microwave devices uses flexible substrates as the basic building block. Flexible microwave substrates are extensively used for variety of high end microwave circuit applications such as high power solid state amplifiers, patch antennas, missile guidance, mobile base stations etc.

Main Properties of Developed Substrate

MAJOR EQUIPMANTS

• High Temperature Furnace, Sigma Mixer, Extruder, Calendering Machine, Multistation Thermolaminating Press, Vacuum laminating oress, D.M Water plant, Oven, Electronic Balance, Planetary Ball Mill and Plasma Etching machine.

MAJOR RAW MATERIALS

• PTFE, Ceramic Filter, Mirofibre glass, Lubricant, Silane coupling agent, Copper foil, CF4 gas, O2 gas, Releasing film.

SPACE REQUIRED

• The space requirement approximately Two rooms (10'' x 12') to comfortable accommodate the above equipments required for the development work.

MAN POWER REQUIREMENT

• One experienced person qualified in Material Science, One electronics engineer having 2-3 years of experience in electronics hardware and software. One diploma in electronics person with 2-3 years of experience and one experienced technician.
