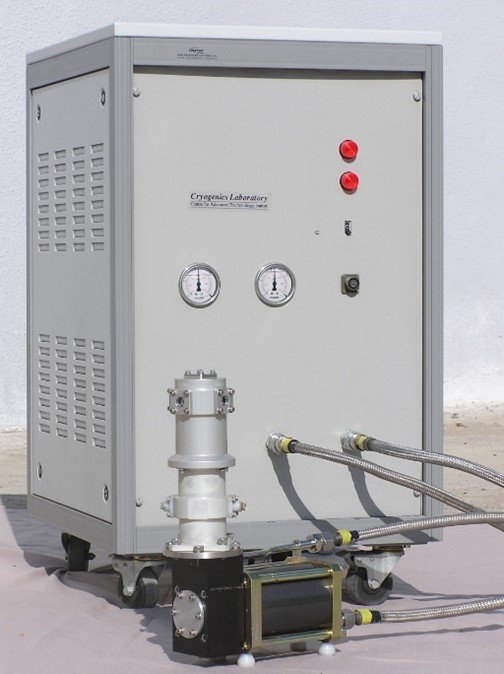

Single Stage 30 K Class Cryocooler with Helium Compressor |
Quick View Leaflet
Single stage 30 K class cryocooler with Helium compressor are key component in various commercial and industrial applications. Single stage 30 Kelvin class cryocooler technology deploys Gifford McMahon cycle to achieve ultra-low temperature at it’s cold finger. These cryocoolers have unique role in applications with small heat load requirements for temperature range in-between boiling point of liquid Nitrogen 77 to 30 Kelvin. It is considered as dry and cryogen free technology to cool small equipment or samples while cutting down on the bulk of the traditional cooling infrastructure needed for the realization of this technology. Helium compressor module for operating this cryocooler is developed in house by modifying commercially available refrigeration compressors with suitable oil injection and separation sub-system for continuous supply of very high purity compressed helium gas.
Detail Technical Brochure
Detailed Technical Brochure
Detailed Technical Brochure
1. Product Technical Specification
| S. No. | Description | Value |
| a. | Cryo Cooler Type | Single stage 30 Kelvin class |
| b. | Base Temperature | 30 Kelvin |
| c. | Cooling Capacity* | Self-load @ 30 K 20 W @ 50 K |
| d. | Cooldown Time | 45 min to 30 K |
| e. | Cold finger Diameter | 30 mm |
| f. | Cryocooler Cold finger length | 165 mm |
| g. | Expander weight | 17 kg |
| h. | Compressor Details | |
| i. | Power Consumption at Steady State | 3.3 kW |
| j. | Electrical | 50 Hz, 3 Phase |
| k. | Cooling Water Flow Rate | 7 Liters/ min at Temp. < 14 deg centigrade |
| l. | Ambient Temperature | 10 – 45 deg C |
| m. | Refrigerant Gas | 99.999% Helium Gas |
| n. | Dimensions (L x W x H) | 600 mm x 600 mm x 850 mm |
| o. | Typical Maintenance | 15,000 hours |
2. Typical End Users
They are very popular amongst the low temperature scientific community because of their simplicity and high reliability. These systems are required in large numbers and has huge potential for producing liquid Nitrogen on demand in the field of animal husbandry for the livestock improvements program, Nuclear Magnetic Resonance (NMR), pharma industry, stem cell research and in-vitro fertilization (IVF). This can be deployed in several other applications pertaining to DAE, Defense, Public Sector, R&D Units, Universities, Large and Scale Industries. Cryocooler system inherently have very high reliability, thus provide continuous uninterrupted cooling for very long operating periods.
3. Facilities Required for Commercial Production
- Recommended facility area requirement 2500 sq. ft.
- Critical assembly to be performed at Class 100 laminar flow bench.
- Parts storage facility
- Testing bench
- Purge and charge station
- Availability of liquid Nitrogen
- Thermal and vacuum test station
- Helium gas and helium gas leak detection equipment.
- TIG welding and Brazing
- Component manufacturing facilities may outsourced / shared.
4. Manpower Requirement
| S. No | Designation | Nos. |
| a. | Graduate Mechanical Engineer with minimum 2 years job experience | 1 |
| b. | Graduate Electronic/ Instrumentation Engineer with minimum 2 years job experience | 1 |
| c. | Supervisors with Diploma in Mechanical Engineering | 1 |
| d. | ITI trained technicians (welding trade -1 & fitter – 1) | 2 |
